Photo guide to assembling the MECH Labs ARC-1
Step by step air system setup guide for the ARC-1
ARC-1 hop-up adjustment guide with labelled diagram
ARC-1 air inlet and ASA fitting guide with HPA tank compatibility notes

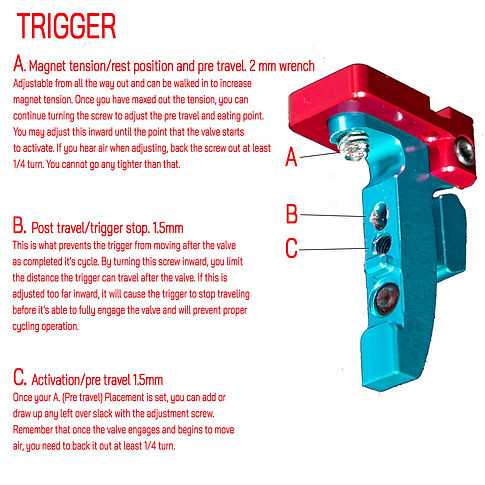

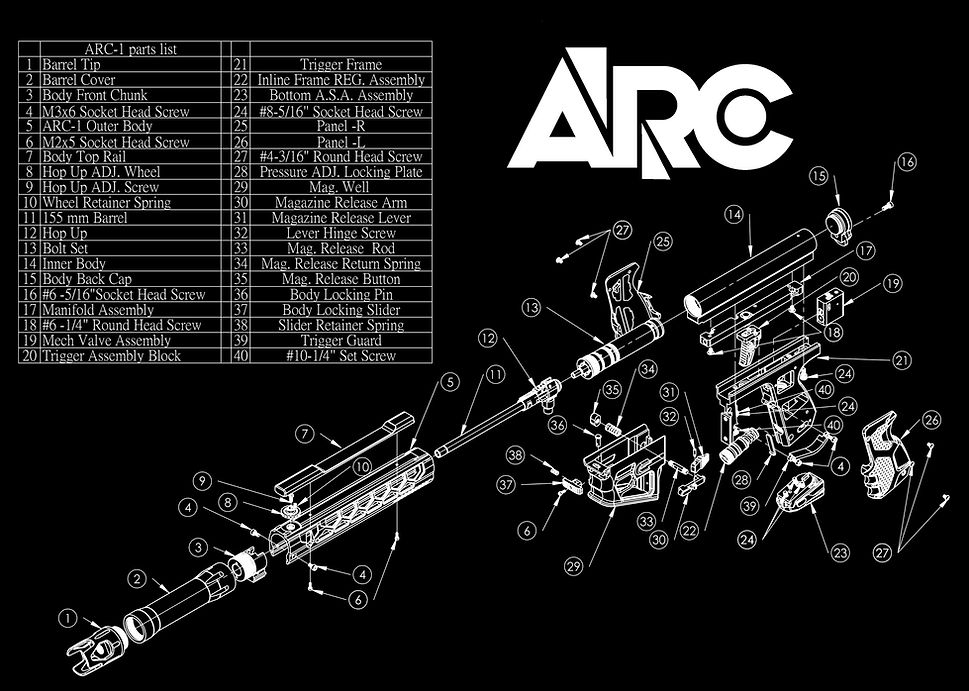

Full exploded diagram of the MECH Labs ARC-1 airsoft rifle
Exploded view of an ARC-1 assembly with parts list
Exploded view of an ARC-1 sub-assembly with parts list
Exploded view of an ARC-1 assembly with numbered parts list
